# load packages
library(tidyverse)
library(tidytext)
library(ngram)
library(igraph)
library(ggraph)
library(patchwork)
library(svglite)
library(geomnet)
library(rgexf)
library(qgraph)
library(genBaRcode)
library(ggraph)
library(ggiraph)
library(tidygraph)
library(scales)
#install.packages(
# "microViz",
#repos = c(davidbarnett = "https://david-barnett.r-universe.dev", getOption("repos"))
#)
#if (!require("BiocManager", quietly = TRUE))
# install.packages("BiocManager")
#BiocManager::install("phyloseq")
library(microViz)
library(tidygraph)
library(plotly)
library(classInt)A Dynamic Network Model of Bilingual Speech
About this document
This document contains the script used to analyze the data of two German-English bilingual children, “Fion” and “Silvie”, for the paper “A dynamic network model of bilingual speech”. The method is based on Ibbotson, Salnikov & Walker (2019). The data come from corpora described in more detail in e.g. Quick et al. (2018) and Koch, Endesfelder Quick & Hartmann (2025).
Data availability
The “Fion” data are already publicly available on OSF and will soon be available on the Child Language Data Exchange System (CHILDES) as well. The “Silvie” data are currently in the process of being anonymized; we expect the data to become public in 2026.
Preliminaries
Loading some packages:
Data
CHI: Monolingual + mixed
d_fion <- read_csv("../../master/fion_CHI.csv")
d_silvie <- read_csv("../../master/silvie_CHI.csv")Data wrangling
We only want to take multi-word units into account, hence we first filter them out:
# add wordcount
d_fion$wordcount <- sapply(1:nrow(d_fion),
function(i) wordcount(d_fion$Utterance_clean[i]))
d_silvie$wordcount <- sapply(1:nrow(d_silvie),
function(i) wordcount(d_silvie$Utterance_clean[i]))
# only multi-word units
mwu_fion <- filter(d_fion, wordcount > 1)
mwu_silvie <- filter(d_silvie, wordcount > 1)Adding language tags: The column “Lang_Tags” already contains word-by-word tags for the code-mixed utterances, but not for the monolingual ones. However, the “type” column contains the information whether the utterance is English, German, or mixed. Hence for all non-mixed utterances, we can fill up the Lang_Tags column with this information. Before doing so, we add a few annotations that are missing in the “Silvie” file:
mwu_fion <- mwu_fion %>% mutate(Lang_Tags = case_when(
Utterance_clean == "darf ich this nicht aufraeumen" ~ "g g e g g",
Utterance_clean == "komm ich this nicht aufraeumen" ~ "g g e g g",
Utterance_clean == "und this my one" ~ "g e e e",
Utterance_clean == "nein no" ~ "g e",
Utterance_clean == "you did birthday in juni" ~ "e e e eg g",
Utterance_clean == "that istis ein birthday my nanny" ~ "e ge g e e e",
Utterance_clean == "und das ist von bob the builder und wendy" ~ "g g g g e e e g eg",
.default = Lang_Tags
))
mwu_silvie <- mwu_silvie %>% mutate(Lang_Tags = case_when(Utterance_clean == "und this noch" ~ "g e g",
Utterance_clean == "der postman pat" ~ "g e e",
Utterance_clean == "ja a game" ~ "g e e",
Utterance_clean == "ja this big one" ~ "g e e e",
Utterance_clean == "ja a starfish" ~ "g e e",
Utterance_clean == "ja the ribbon" ~ "g e e",
Utterance_clean == "das heisst naemlich train train train train" ~ "g g g e e e e",
.default = Lang_Tags))Also, there are some inconsistencies in the tagging that lead to more factor levels than necessary, we correct those:
mwu_fion$Lang_Tags <- gsub("e\\(meta\\)", "e", mwu_fion$Lang_Tags)
mwu_fion$Lang_Tags <- gsub("ge", "eg", mwu_fion$Lang_Tags)
mwu_fion$Lang_Tags <- gsub("m", "eg", mwu_fion$Lang_Tags)
mwu_silvie$Lang_Tags <- gsub("ge", "eg", mwu_silvie$Lang_Tags)
mwu_silvie$Lang_Tags <- gsub("m", "eg", mwu_silvie$Lang_Tags)Now we can proceed:
# add language tags
mwu_fion$Lang_Tags <- gsub("[[:punct:]]", "", mwu_fion$Lang_Tags)
mwu_silvie$Lang_Tags <- gsub("[[:punct:]]", "", mwu_silvie$Lang_Tags)
# add language tags on a word-by-word-basis to the non-code-mixed utterances
mwu_fion$Lang_Tags <- sapply(1:nrow(mwu_fion), function(i) ifelse(is.na(mwu_fion$Lang_Tags[i]), ifelse(mwu_fion[i,]$type=="german", paste0(rep("g", mwu_fion[i,]$wordcount), collapse = " "), paste0(rep("e", mwu_fion[i,]$wordcount), collapse = " ")), mwu_fion$Lang_Tags[i]))
mwu_silvie$Lang_Tags <- sapply(1:nrow(mwu_silvie), function(i) ifelse(is.na(mwu_silvie$Lang_Tags[i]), ifelse(mwu_silvie[i,]$type=="german", paste0(rep("g", mwu_silvie[i,]$wordcount), collapse = " "), paste0(rep("e", mwu_silvie[i,]$wordcount), collapse = " ")), mwu_silvie$Lang_Tags[i]))Get bigrams
As we are interested in transitional probabilities between words, we need bigrams, which we get using the unnest_tokens function from the tidytext package. For each bigram, we also want the language information for the individual words, which is why we also extract bigrams from the Lang_Tags column in a second step and then join the dataframes. Finally, we split up the bigrams so that word1 and word2 are in different columns, which makes it easier to calculate the transition probabilities.
bigrams_fion <- mwu_fion %>% unnest_tokens(bigram, Utterance_clean, token = "ngrams", n = 2, drop = FALSE)
bigrams_silvie <- mwu_silvie %>% unnest_tokens(bigram, Utterance_clean, token = "ngrams", n = 2, drop = FALSE)
bigrams_fion <- bind_cols(bigrams_fion,
mwu_fion %>% unnest_tokens(bigram_LangTag, Lang_Tags, token = "ngrams", n = 2, drop = FALSE) %>% select(bigram_LangTag))
bigrams_silvie <- bind_cols(bigrams_silvie,
mwu_silvie %>% unnest_tokens(bigram_LangTag, Lang_Tags, token = "ngrams", n = 2, drop = FALSE) %>% select(bigram_LangTag))
# one column for each word
bigrams_fion <- bigrams_fion %>% separate(bigram, c("word1", "word2"), sep = " ", remove = F)
bigrams_silvie <- bigrams_silvie %>% separate(bigram, c("word1", "word2"), sep = " ", remove = F)
bigrams_fion <- bigrams_fion %>% separate(bigram_LangTag, c("LangTag1", "LangTag2"), sep = " ", remove = F)
bigrams_silvie <- bigrams_silvie %>% separate(bigram_LangTag, c("LangTag1", "LangTag2"), sep = " ", remove = F)
# add child column
bigrams_fion <- mutate(bigrams_fion, Child = "Fion")
bigrams_silvie <- mutate(bigrams_silvie, Child = "Silvie")Function for periodization
This function adds a `Months` column to the data in which several months can be binned into larger groups. This makes it easier to try out different periodization options (or to stick with the original months data, i.e. have one network per month).
To make an informed decision about the way the data are split, let’s first take a quick look at the distribution of data across the timespan:
# number of words

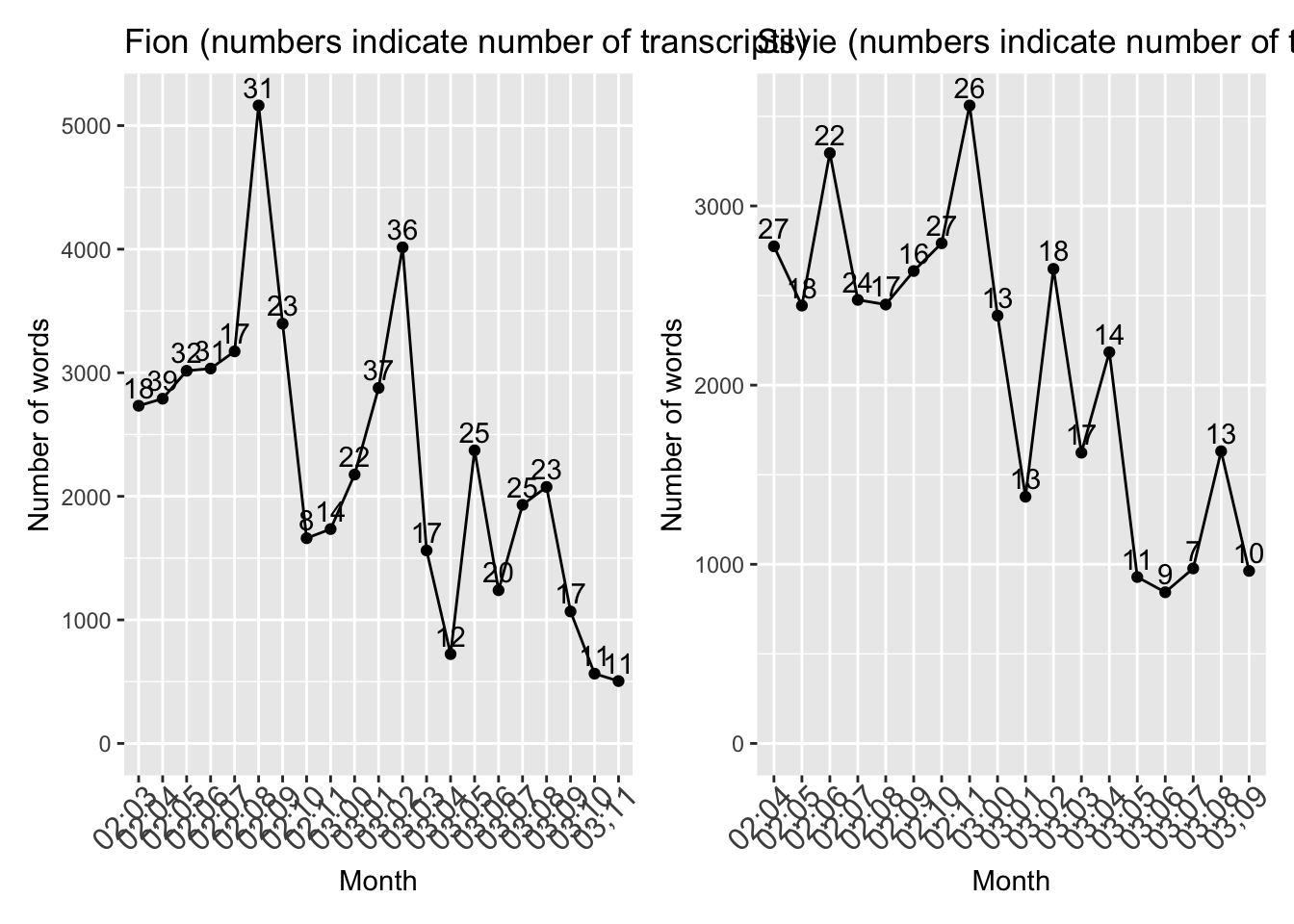

d_fion %>% group_by(Month) %>% summarise(
n_words = n(),
n_files = length(unique(Filename))
) %>% ggplot(aes(x=Month, y = n_words, label = n_files)) +
geom_point() +
geom_line(group = 1) +
geom_text(position = position_stack(), vjust = -0.4) +
theme(axis.text.x = element_text(angle=45, hjust=.9, size=12)) +
ylab("Number of words") +
ggtitle("Fion (numbers indicate number of transcripts)") + d_silvie %>% group_by(Month) %>% summarise(
n_words = n(),
n_files = length(unique(Filename))
) %>% ggplot(aes(x=Month, y = n_words, label = n_files)) +
geom_point() +
geom_line(group = 1) +
geom_text(position = position_stack(), vjust = -0.4) +
theme(axis.text.x = element_text(angle=45, hjust=.9, size=12)) +
ylab("Number of words") +
ggtitle("Silvie (numbers indicate number of transcripts)")
In both datasets, we have fewer transcripts and, hence, fewer words in the later periods. Thus, it seems useful to work with three-month periods and bootstrapped 1000-word samples.
# function for getting equal-sized intervals
get_equal_bins <- function(x, n) {
cur_var <- 1:length(unique(x))
cur_breaks <- round(seq(1, length(unique(x)), by = length(unique(x)) / n))
# add last number to breaks
cur_breaks[length(cur_breaks)+1] <- cur_var[length(cur_var)]
# add 0 to var and breaks so that we can calculate +1
# below to avoid overlaps between two groups
cur_var <- c(0, cur_var)
cur_breaks[1] <- 0
# cur_breaks[1] <- 0 # to make sure that it starts with 1
cur_list <- lapply(1:(length(cur_breaks)-1), function(i) cur_var[((which(cur_var==cur_breaks[i])+1)):(which(cur_var==cur_breaks[1+i]))])
return(cur_list)
}
# function for adding months column
add_month_bins <- function(df, n_bins) {
cur_bins <- get_equal_bins(df$Month, n_bins)
# list to dataframe
cur_bins_df <- do.call(rbind, lapply(1:length(cur_bins), function(i) tibble(index = i,
no = cur_bins[[i]])))
# get bin range
bins_tbl01 <- tibble(age = unique(df$Month),
no = 1:length(unique(df$Month)))
# join
cur_bins_df <- left_join(cur_bins_df, bins_tbl01)
# bins in character form (from a to b)
cur_bins_ch <- sapply(1:length(cur_bins), function(i) paste0(unique(df$Month)[cur_bins[[i]][1]], "-",
unique(df$Month)[cur_bins[[i]][length(cur_bins[[i]])]]))
# in tabular form
bins_tbl <- tibble(bin = 1:length(cur_bins),
age_range = cur_bins_ch)
# add to existing dataframe
cur_bins_df <- left_join(cur_bins_df, bins_tbl, by = c("index" = "bin"))
# return Months column
cur_df_with_age_range <- left_join(df, select(cur_bins_df, age, age_range), by = c("Month" = "age"))
return(cur_df_with_age_range)
}Getting periods and samples
As mentioned above, we want to work with bootstrapped 1,000-word samples from three-month periods. We therefore divide the Fion data into 21/3 = 7 bins, the Silvie data into 18/3 = 6 bins.
# how many months for Fion and Silvie?
length(unique(d_fion$Month))[1] 21length(unique(d_silvie$Month))[1] 18# add bins
bigrams_fion <- bigrams_fion %>% add_month_bins(n_bins = 7)
bigrams_silvie <- bigrams_silvie %>% add_month_bins(n_bins = 6)
# get samples
# Fion:
for(i in 1:7) {
cur_fion <- filter(bigrams_fion, age_range == levels(factor(bigrams_fion$age_range))[i])
set.seed(i)
cur_samples <- lapply(1:100, function(i) sample(1:length(unique(cur_fion$Utt_no)), 450))
assign(paste0("bigrams_fion0", i), cur_fion[unlist(cur_samples),])
}
# Silvie:
for(i in 1:6) {
cur_silvie <- filter(bigrams_silvie, age_range == levels(factor(bigrams_silvie$age_range))[i])
set.seed(i)
cur_samples <- lapply(1:100, function(i) sample(1:length(unique(cur_silvie$Utt_no)), 450))
assign(paste0("bigrams_silvie0", i), cur_silvie[unlist(cur_samples),])
}Getting networks
The following function calculates the actual networks by calculating transition probabilities, filtering out all instances attested less than n_min (default: 5) times.
get_network <- function(bigram_df, n_min = 0, modularity_measure = FALSE) {
# count the bigram_df
bigrams_count <- bigram_df %>% group_by(LangTag1, LangTag2) %>% count(word1, word2, sort = T)
# filter out all below 5
l <- bigrams_count %>%
filter(n >= n_min)
# check if there are data
if(nrow(l) > 0) {
# get bigram graph edges and vertices
bigram_graph <- bigrams_count %>%
filter(n >= n_min) %>%
ungroup %>% select(word1, word2, n) %>% graph_from_data_frame(directed = FALSE)
# set weight attributes
bigram_graph <- set_edge_attr(bigram_graph, "weight", value = l$n)
# set labels
V(bigram_graph)$label <- V(bigram_graph)$name
# Louvain clustering
lv <- cluster_louvain(bigram_graph)
# add Louvain clustering to graph
V(bigram_graph)$community <- membership(lv)
# add language and word frequency as attributes
# to do so, we need a list of unigrams
# language tags of unigrams
unigram_LangTags <- bind_cols(bigram_df %>% select(Utt_no, Utterance_clean, Lang_Tags) %>% unique() %>% unnest_tokens(output = "unigram", input = "Utterance_clean", token = "ngrams", n = 1),
select(bigram_df %>% select(Utt_no, Utterance_clean, Lang_Tags) %>% unique() %>% unnest_tokens(output = "unigram_LangTag", input = Lang_Tags, token = "ngrams", n = 1), unigram_LangTag)) %>% select(unigram, unigram_LangTag) %>% unique()
# get frequencies of individual words
unigrams_freqs <- bigram_df %>% select(Utt_no, Utterance_clean) %>% unique() %>% unnest_tokens(output = "unigram", input = Utterance_clean) %>% group_by(unigram) %>% summarise(
n = n()
)
# add unigram LangTags as attributes to the graph
V(bigram_graph)$language <- sapply(1:length(V(bigram_graph)), function(i) unigram_LangTags[which(unigram_LangTags$unigram == V(bigram_graph)$name[i]),]$unigram_LangTag[1])
# add color as attribute
V(bigram_graph)$color <- case_when(V(bigram_graph)$language == "g" ~ "salmon",
V(bigram_graph)$language == "e" ~ "deepskyblue",
V(bigram_graph)$language == "eg" ~ "tan",
.default = "grey")
# add frequency as attribute
V(bigram_graph)$Freq <- sapply(1:length(V(bigram_graph)), function(i) unigrams_freqs[which(unigrams_freqs$unigram==V(bigram_graph)$name[i]),]$n[1])
# return graph or modularity measure

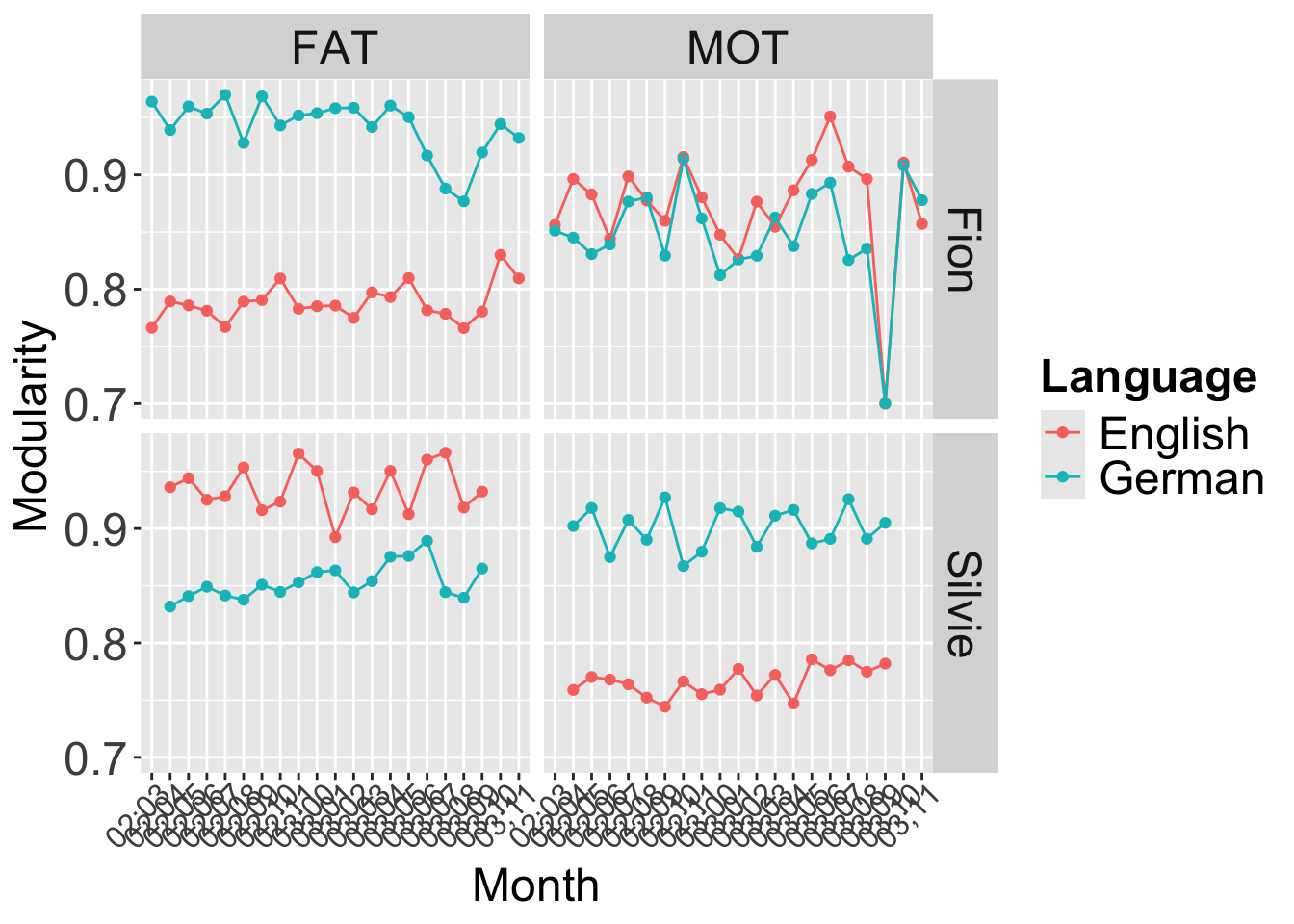

if(modularity_measure) {
return(modularity(lv))
} else {
return(bigram_graph)
}
}
}Visualization
The functions created above can now be combined to create networks for different age spans.
# function for plotting
get_plot <- function(cur_network, myseed = 1999, min_freq = 0, interactive = FALSE, repel = TRUE, max.overlaps = 20) {
# Compute layout
layout <- create_layout(cur_network, layout = "fr")
# Build plot
set.seed(myseed)
p <- ggplot(layout) +
geom_edge_link(aes(x = x, y = y, xend = xend, yend = yend, edge_width = rescale(weight, to = c(.05, .5)), alpha = weight), color = "gray") +
geom_point_interactive(
aes(x = x, y = y, tooltip = name, color = color, size = Freq)
) +
geom_node_text(aes(label = ifelse(Freq > min_freq, name, ""), size = Freq), repel = repel, max.overlaps = max.overlaps) +
stat_ellipse(aes(x=x, y=y, group = as.factor(community), fill = as.factor(community)),
geom = "polygon", alpha = 0.1, color = NA) +
scale_color_identity() +
theme_void() +
theme(legend.position = "none")
if(interactive) {
# Zoomable plot with girafe
g <- girafe(
ggobj = p,
options = list(
opts_zoom(min = 1, max = 60),
opts_toolbar(saveaspng = TRUE)
)
)
return(g)
} else {
return(p)
}
}Plots for publication
# create seven plot objects named p_f1 to p_f7 for Fion's networks

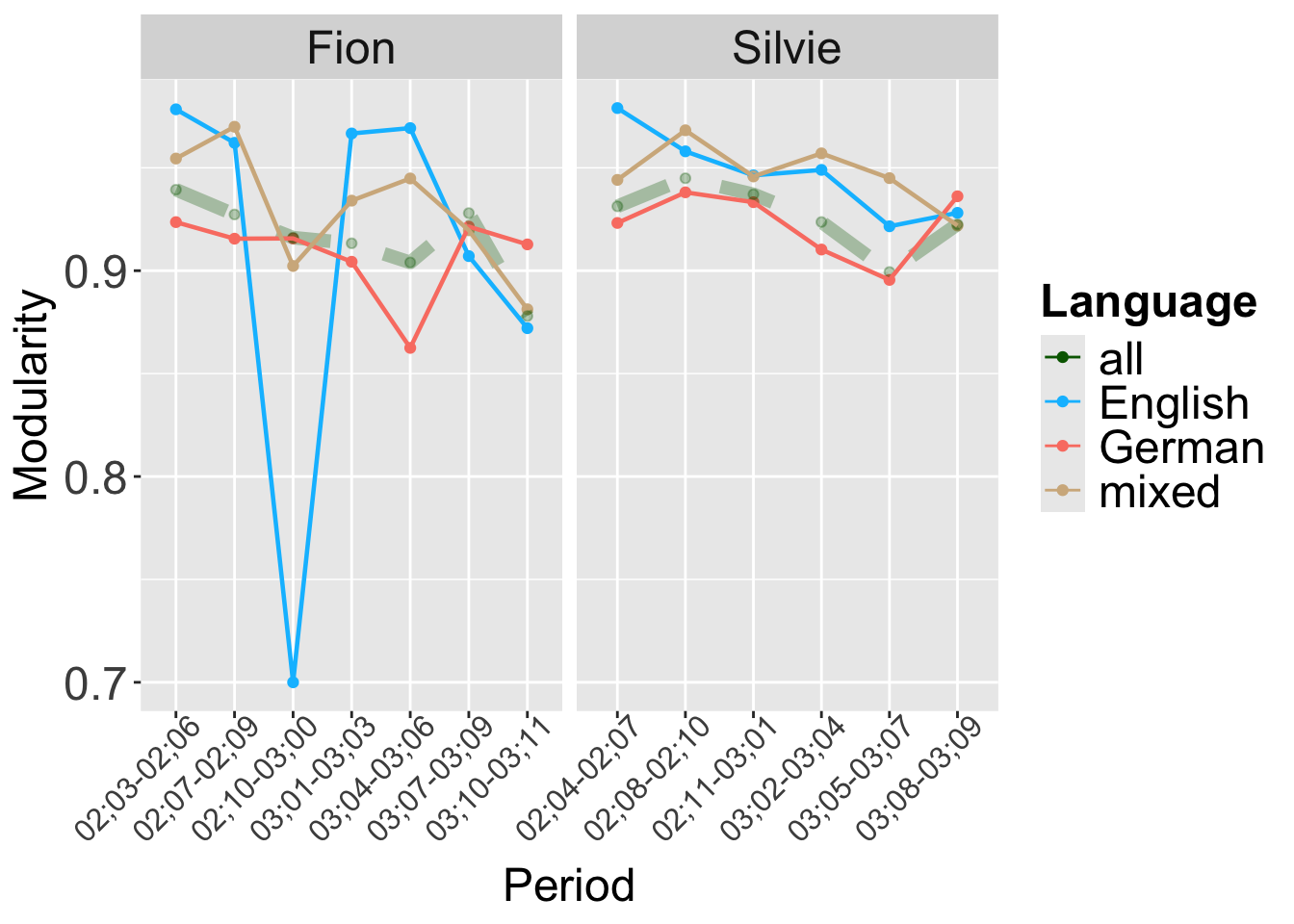

for(i in 1:7) {
assign(paste0("p_f", i), get(paste0("bigrams_fion0", i)) %>% get_network() %>% get_plot(repel = FALSE, min_freq = 5) + ggtitle(levels(factor(bigrams_fion$age_range))[i]) + theme(plot.title = element_text(face = "bold", hjust = 0.5)))
}

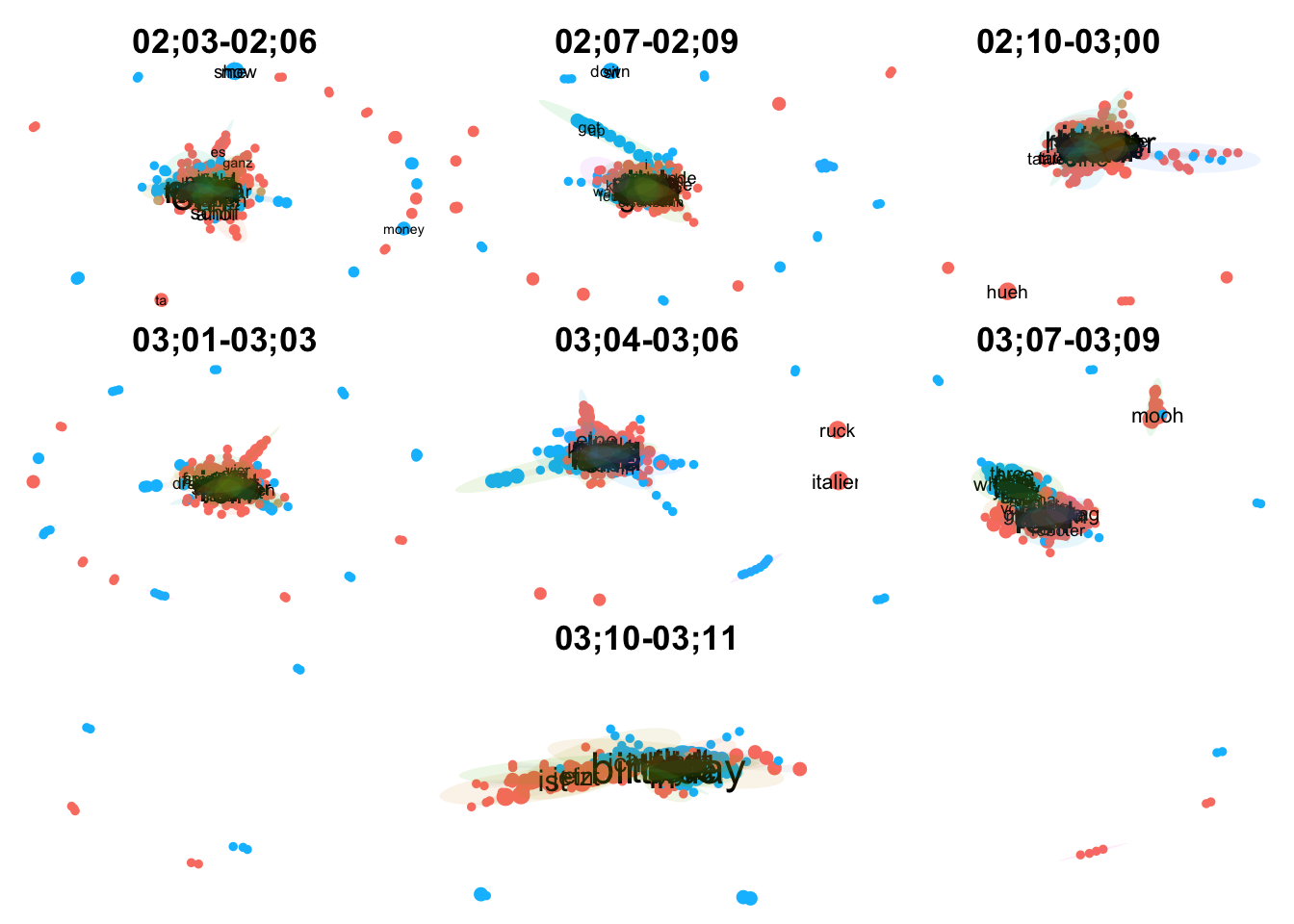

(p_f1 | p_f2 | p_f3) /
(p_f4 | p_f5 | p_f6) /
p_f7
# ggsave("images/fion_networks01.png", width = 15, height = 15)
# create six plot objects named p_f1 to p_f7 for Silvie's networks
for(i in 1:6) {
assign(paste0("p_s", i), get(paste0("bigrams_silvie0", i)) %>% get_network() %>% get_plot(repel = TRUE, min_freq = 5, max.overlaps = 50) + ggtitle(levels(factor(bigrams_silvie$age_range))[i]) + theme(plot.title = element_text(face = "bold", hjust = 0.5)))
}

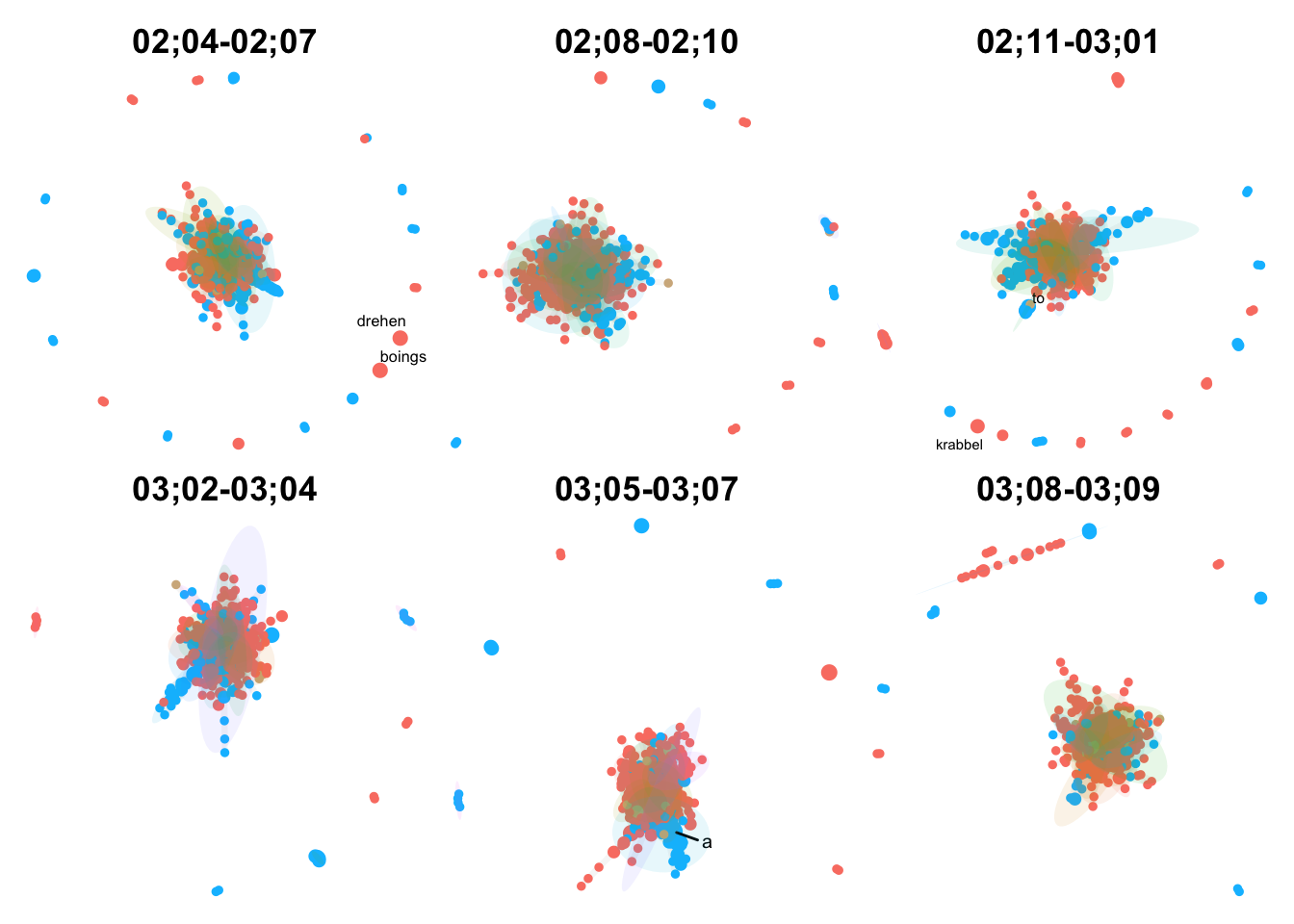

(p_s1 | p_s2 | p_s3) /
(p_s4 | p_s5 | p_s6)
# ggsave("images/silvie_networks01.png", width = 15, height = 15)Plots for online viewing
# Fion

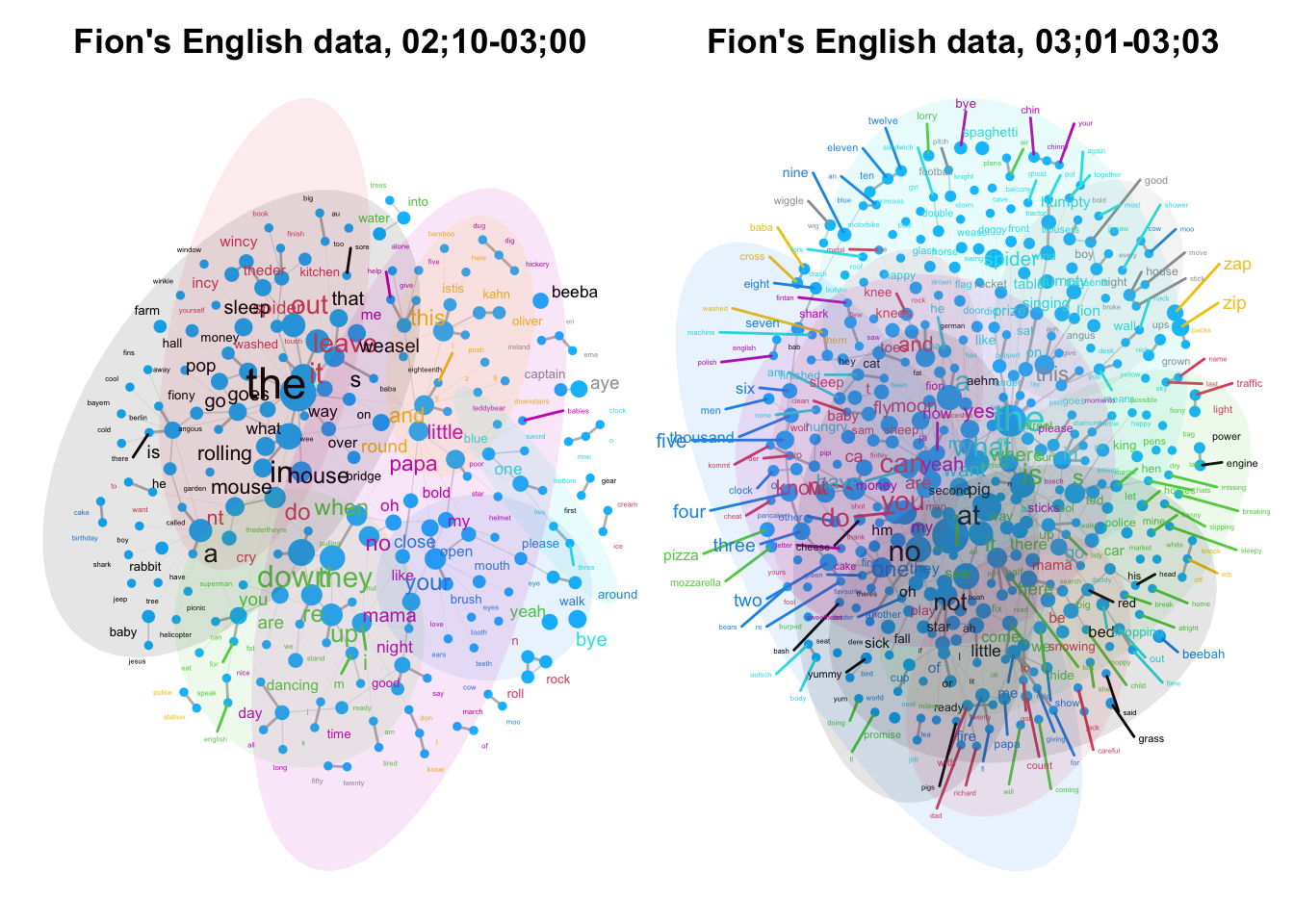

bigrams_fion01 %>% get_network() %>% get_plot(repel = FALSE, interactive = TRUE)bigrams_fion02 %>% get_network() %>% get_plot(repel = FALSE,interactive = TRUE)bigrams_fion03 %>% get_network() %>% get_plot(repel = FALSE,interactive = TRUE)bigrams_fion04 %>% get_network() %>% get_plot(repel = FALSE,interactive = TRUE)bigrams_fion05 %>% get_network() %>% get_plot(repel = FALSE,interactive = TRUE)bigrams_fion06 %>% get_network() %>% get_plot(repel = FALSE,interactive = TRUE)bigrams_fion07 %>% get_network() %>% get_plot(repel = FALSE,interactive = TRUE)# Silvie

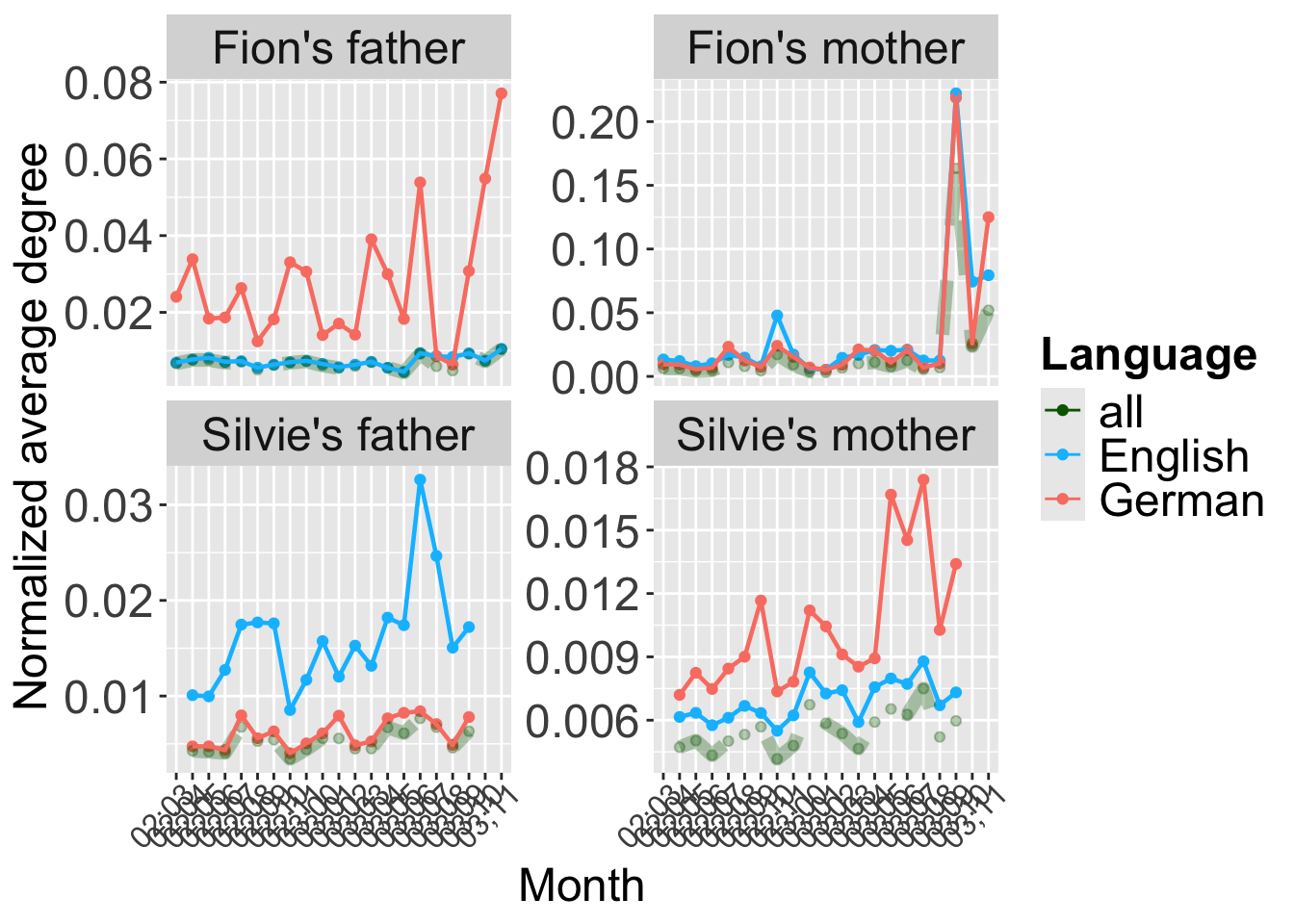

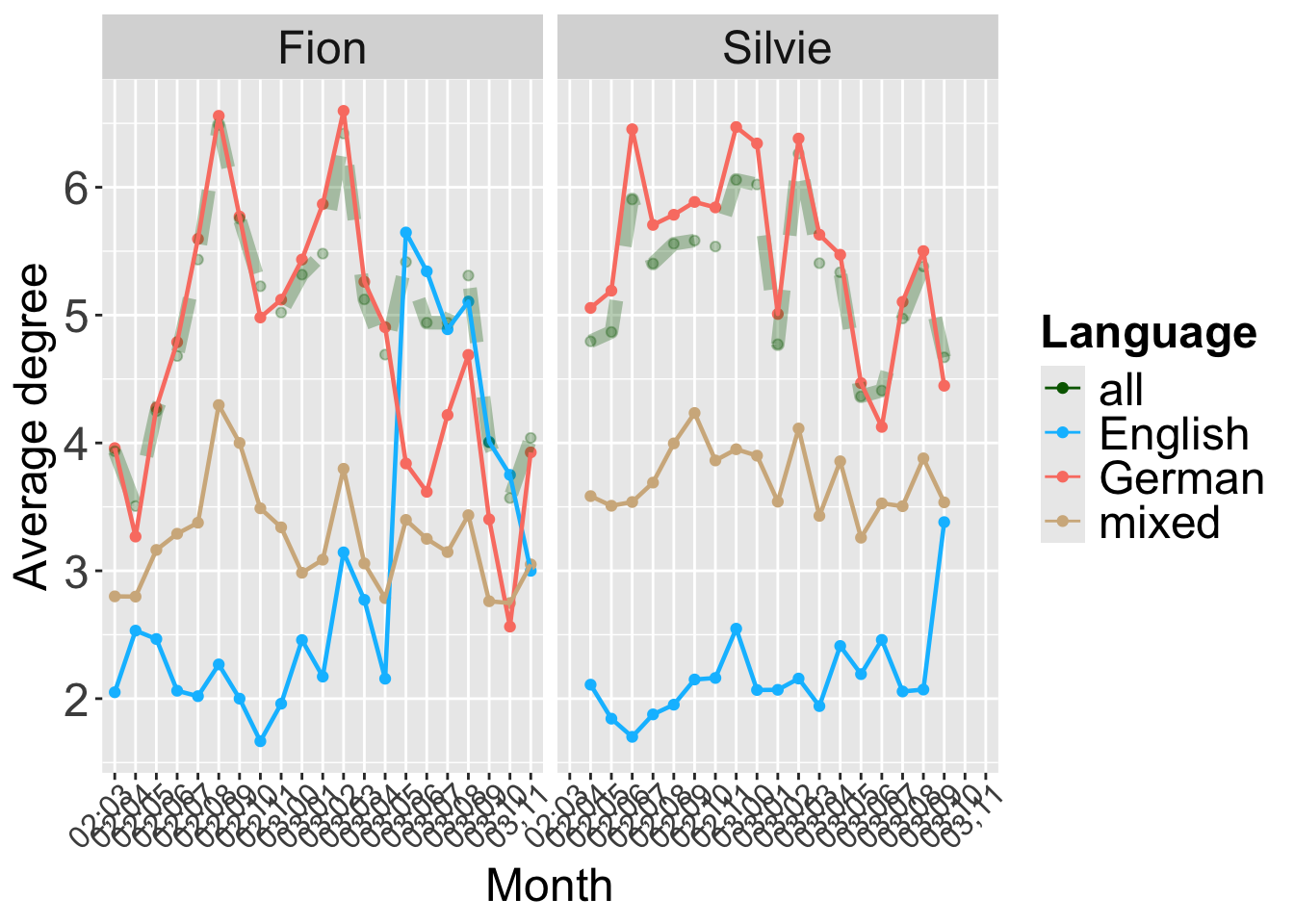

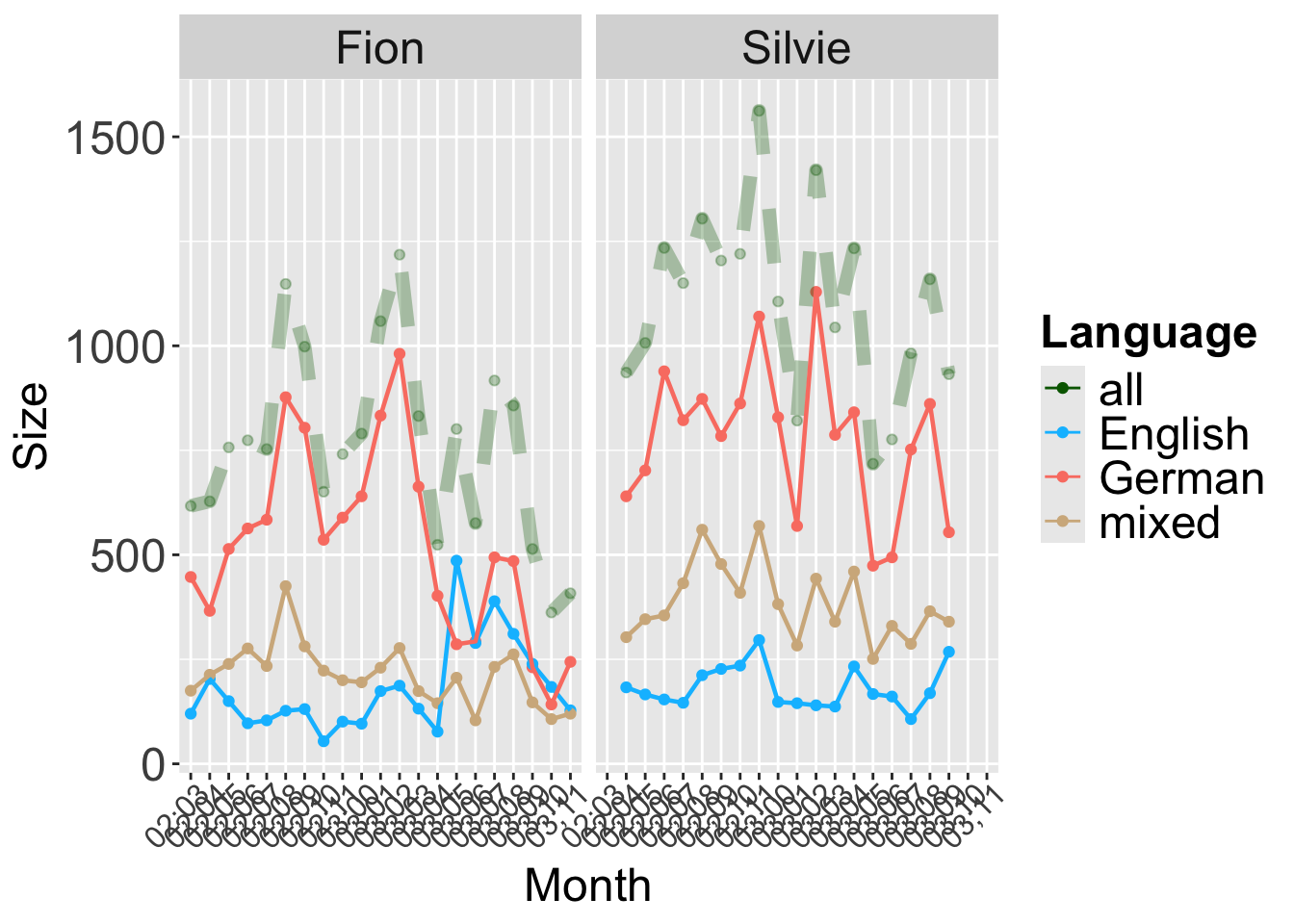

bigrams_silvie01 %>% get_network() %>% get_plot(repel = FALSE, interactive = TRUE)
